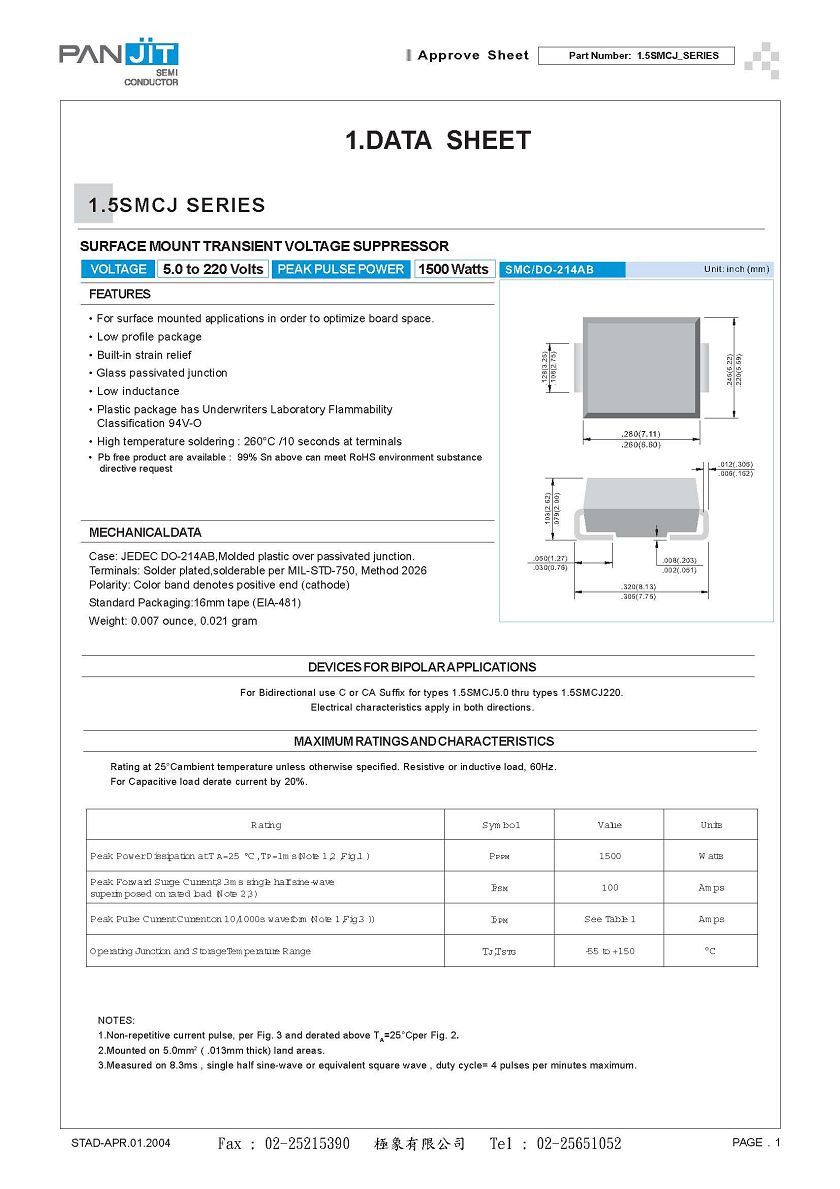

1.5SMCJ SERIES

極象有限公司

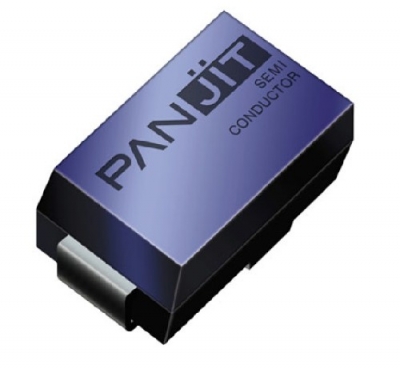

1.5SMCJ SERIES             DO-214AB / SMC               強茂 - PANJIT
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types 1.5SMCJ5.0 thru types 1.5SMCJ220.
VOLTAGE 5.0 to 220 Volts PEAK PULSE POWER 1500 Watts
