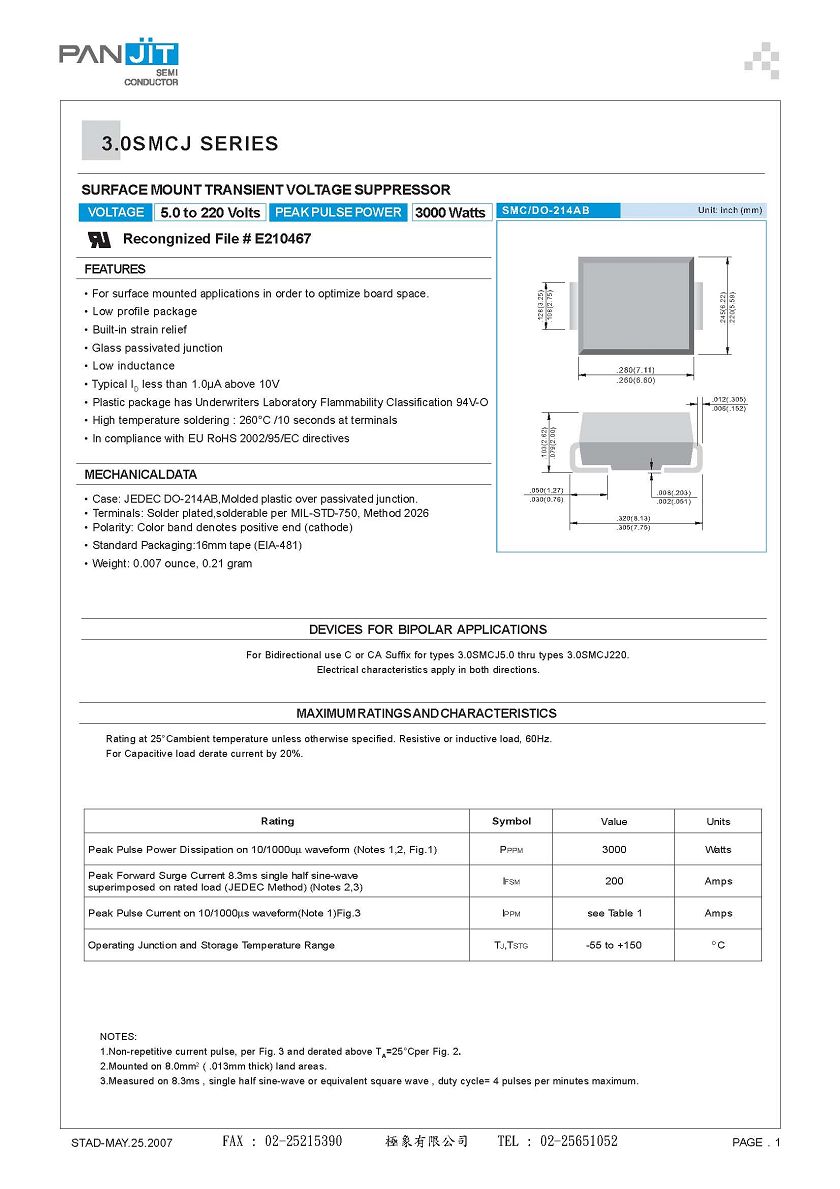

3.0SMCJ SERIES / SMC 3000W

極象有限公司         強茂 - PANJIT

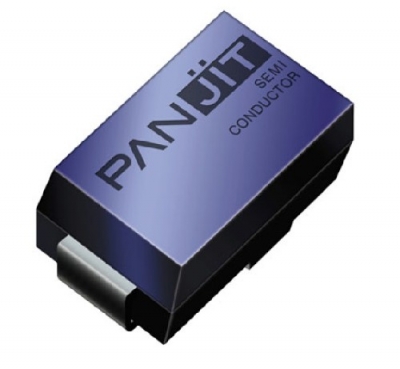

3.0SMCJ SERIES   :PDF             DO-214AB /SMC
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types 3.0SMCJ5.0 thru types 3.0SMCJ220.
VOLTAGE 5.0 to 220 Volts PEAK PULSE POWER 3000 Watts
