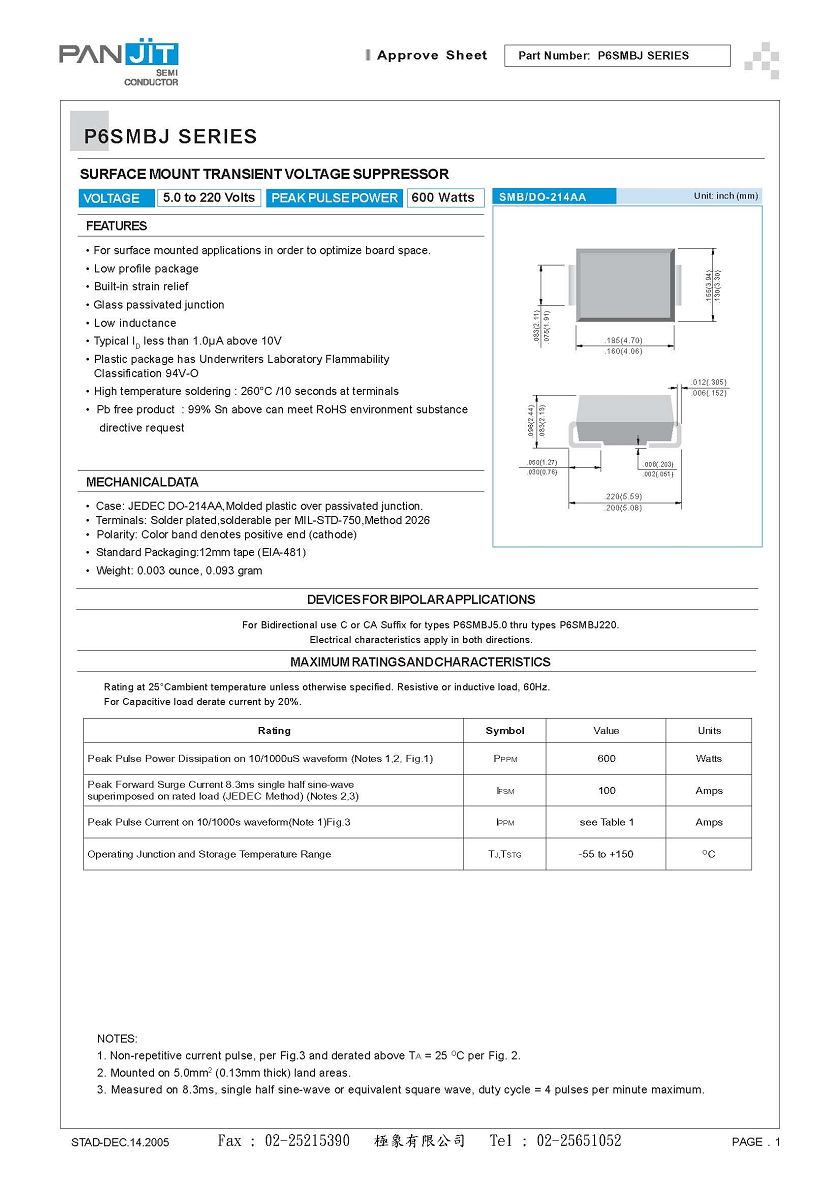

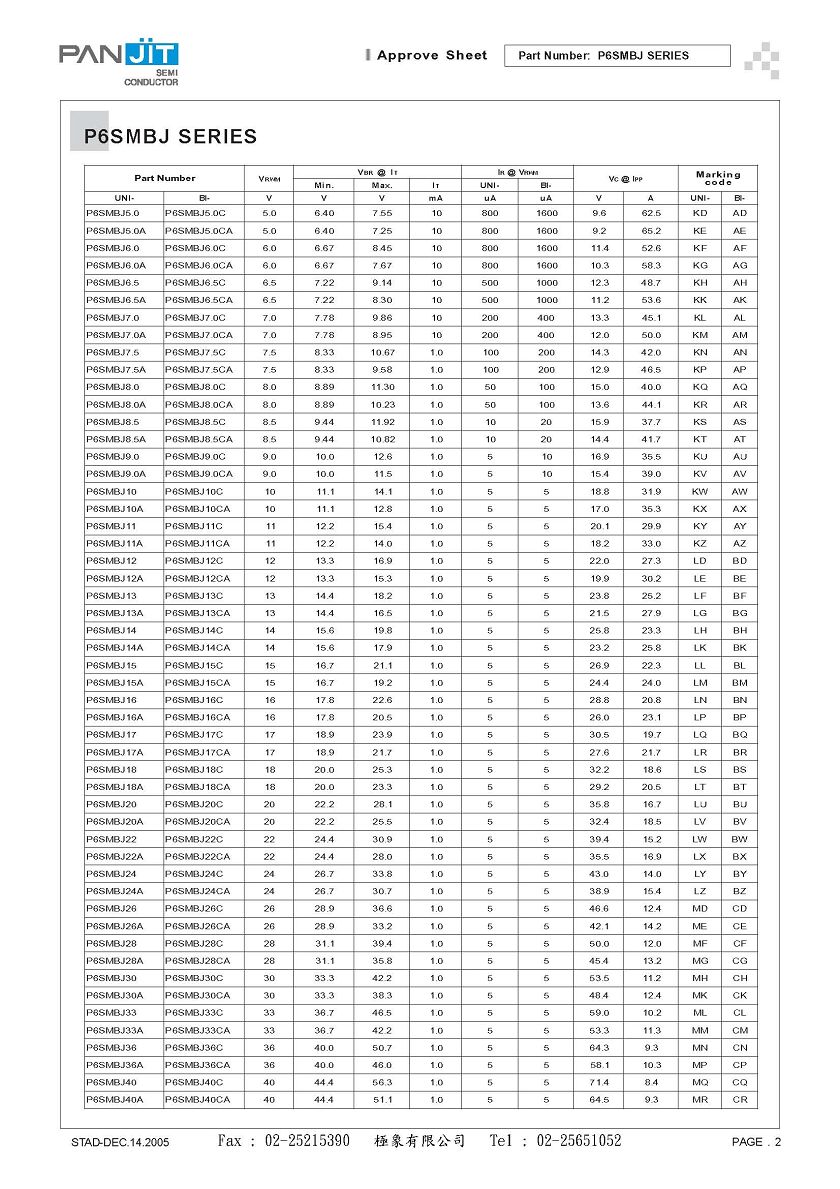

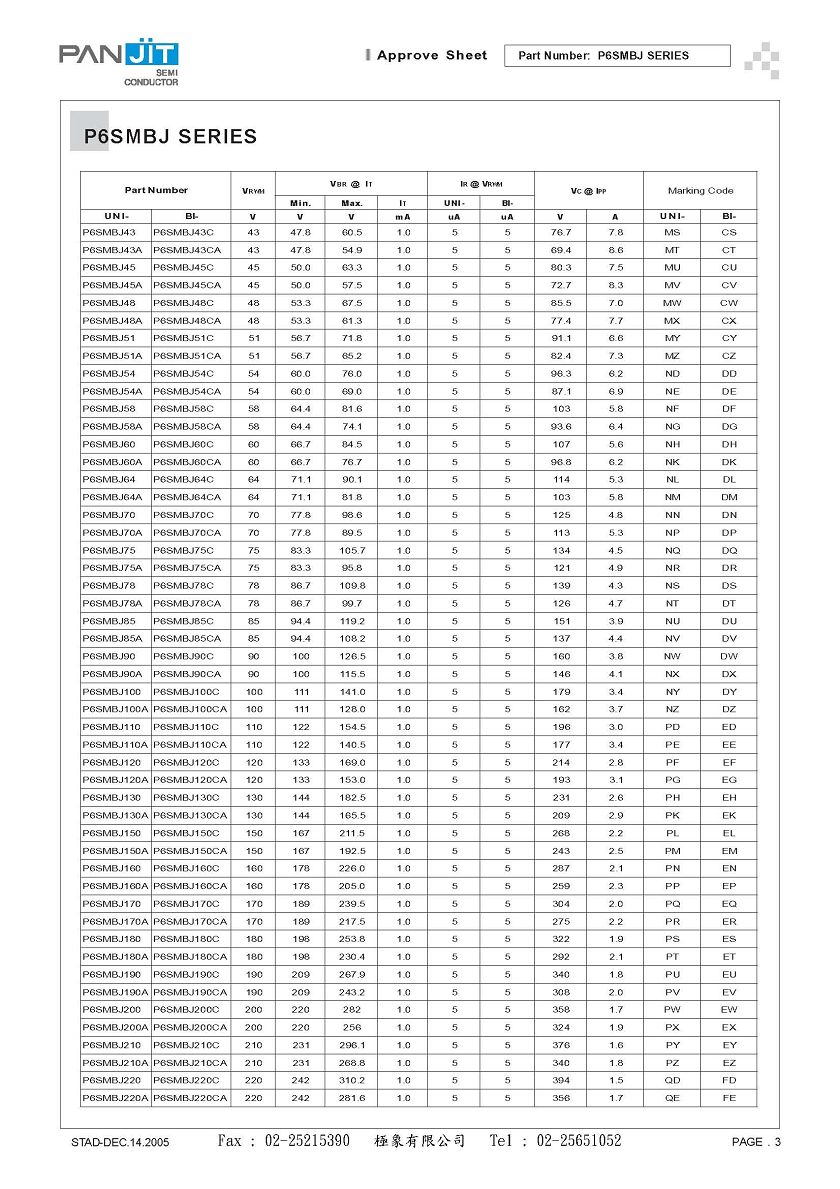

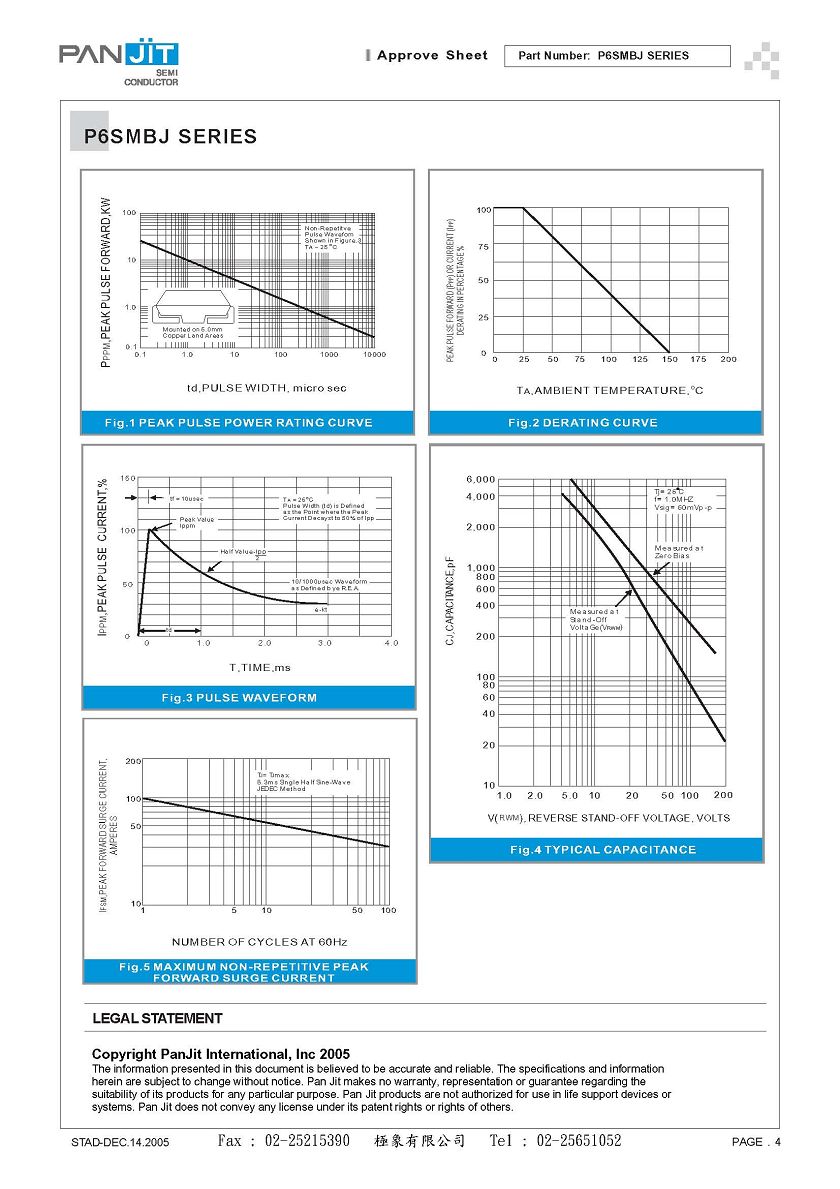

P6SMBJ SERIES / SMB

極象有限公司
P6SMBJ SERIES              DO-214AA / SMB                   強茂 - PANJIT

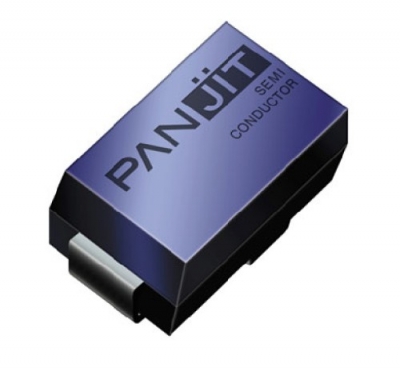

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR  DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types P6SMBJ5.0 thru types P6SMBJ220.
VOLTAGE 5.0 to 220 Volts PEAK PULSE POWER 600 Watts
